50000 Hours Waterproof IP65 Led Industrial Flood Lights 100W
led industrial flood lights100W 240VAC 50Hz waterproof IP65 130lm/w 13000lm IK08

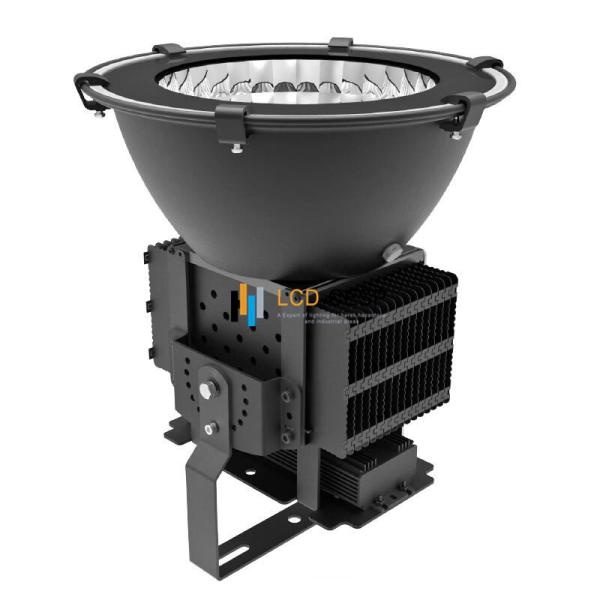

LCD HQ Series LED High Bay Light:
As the most suitable replacement choice for high power traditional light, LCD HQ series led highbay light is widely used to install in workshop, stadium, sports field, squares, golf courses, marine, airports, subways, shipyard, outdoor advertising, etc.
From 100w-500w led highbay available, this series led high bay is mainly used to replace 600w-1000w HPS lamp and high power MH lamp.
What is the ennovation on structure and material?
| Adopt original PCCOOLER housing, not only in unique and nice outlook, but also with scientific design to make sure no problem on heat dissipation; |
| ◆216D Adjustable Angle 13 holes for adjustment, to allow the bracket installation changed within 216 degree, easy for installation and light emitting; |
|  |
| ◆Use pure copper heat pipe Fin-cooling technology plus pure copper heat pipe, to ensure the heat on led chip could be conducted fast and completely out onto the heat sink, which protect the led source and extend the lighting fixture lifespan; |
|
100w HQ-103 vs Conventional Light:
| 100w LED High Bay | = | 400w HPS (High Pressure Sodium) |
| 100w LED High Bay | = | 250w MH (Metal Halide) |
SPECIFICATION
| Product Number | LCD-HQ-103 | LCD-HQ-153 | LCD-HQ-203 | LCD-HQ-303 | LCD-HQ-403 | LCD-HQ-503 | LCD-HQ-603 |
| Rated Power | 100W | 150W | 200W | 300W | 400W | 500W | 600W |
| Rated Voltage | 90-305VAC |
| Lumen (lm) | 12000-13000 | 18000-19500 | 24000-26000 | 36000-39000 | 48000-52000 | 60000-65000 | 72000-78000 |
| Power Factor | >97 |
| Color Temperature | 3000-6500K |
| CRI (Ra) | >75 |
| IP Rating | IP65 |
| LED Chip & Type | LUMILEDs SMD3030 |
| LED Qty | 100pcs | 150pcs | 210pcs | 320pcs | 400pcs | 480pcs | 610pcs |
| Driver | Meanwell/philips |
| Lifespan | >50,000hr |
| Housing Material | Aluminum6063 extruded/heat copper pipe |
| Operating Temperature | -30°C~+110°C |
| Beam Angle | 25°/ 60°/ 90° |
| Warranty | 5-7 years |
LED high bay comparison
| BROWN BEAR FLOOD & HIGH BAY LCD-HQ Series | Can replace traditional metal halide | Applications |
| LCD-HQ-103 100W (13000lm) | 250w-400w | Plant construction / power plant |
| LCD-HQ-153 150W (19500lm) | 450W-600w | Workshops / factories / Automotive |
| LCD-HQ-203 200W (26000lm) | 600w-800w | Material handling / Machine building |
| LCD-HQ-303 300W (39000lm) | 800W-1200w | logistics center / warehouse |
| LCD-HQ-403 400W (52000lm) | 1200w-1600w | Smelting plant /steel mill |
| LCD-HQ-503 500W (65000lm) | 1600w-2000w | Shipbuilding / offshore platforms |
| LCD-HQ-603 600W (78000lm) | 2000w-3000w | sport court / stadium / harbor |
APPLICATIONS
| Construction and Earth Moving |
| Drilling, Mining and Quarrying |
| Demolition and Recycling |
| Transportation, Shipping and Aviation |
| Environment and Infrastructure |
| Service and Maintenance |
| Property Management |
| Forestry, Agriculture and Fur Farming |
| Rental |
| Firefighting, Rescue and Military |
| Special Vehicles and Process Industry |
| Offshore and Subsea |
